Backlit Membrane Keypads

Backlit Membrane Keypads

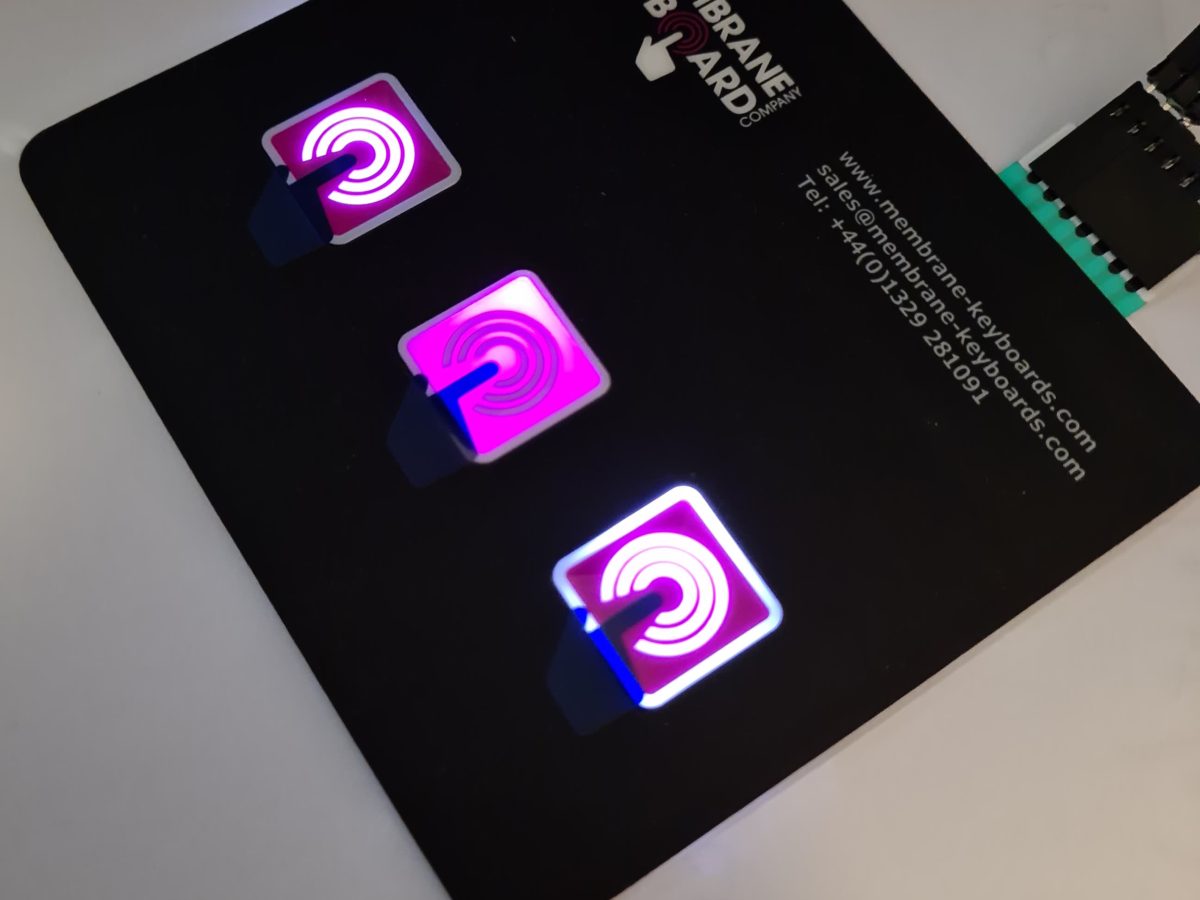

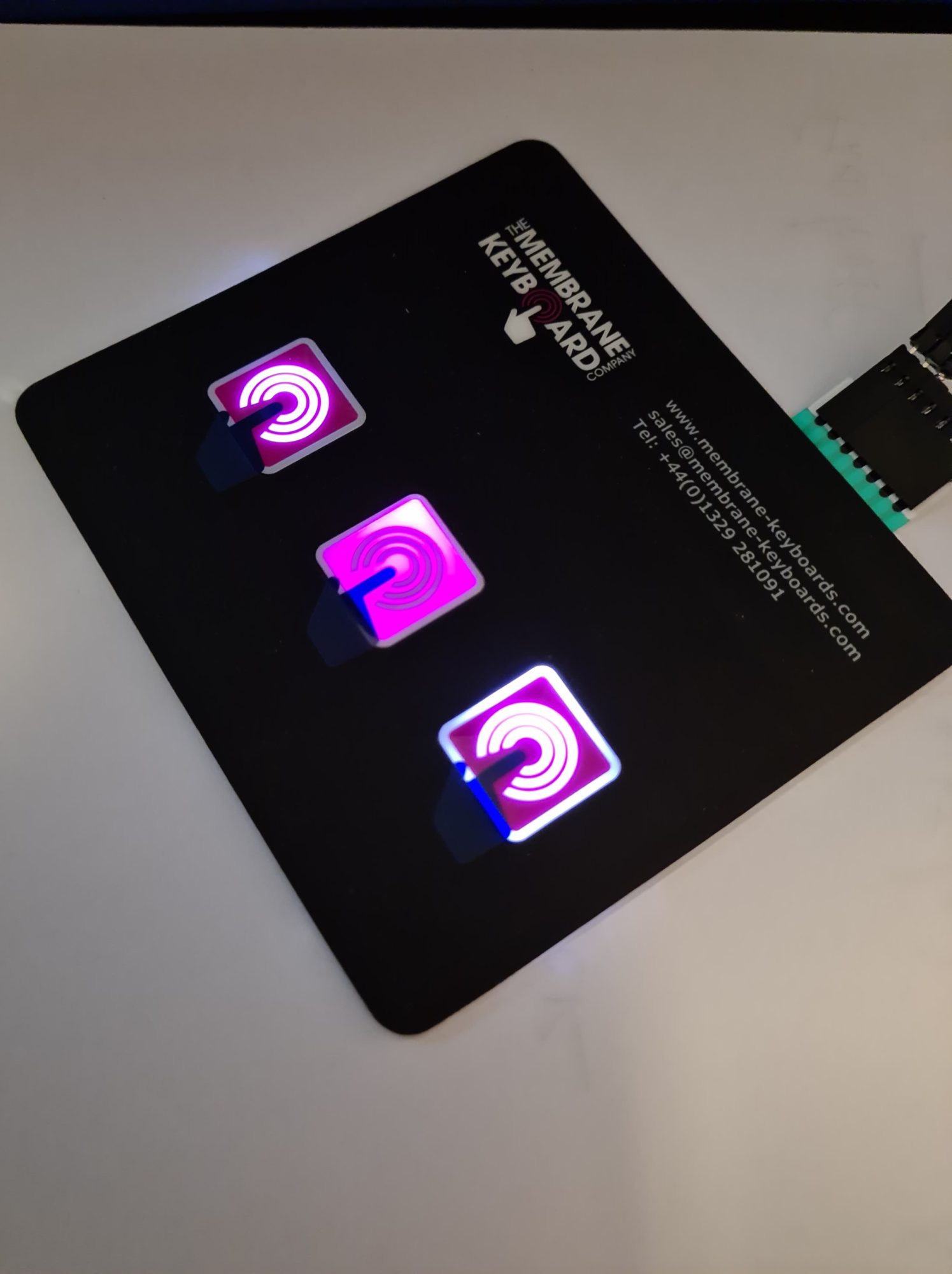

Create full & selective backlighting by incorporating Side Firing LEDs into a flexible Membrane Keypad.

Ideal for light sensitive environments and applications where consistent diode emission is required for prolonged periods of time. Low operating temperature & power consumption, long life cycle and full customization make embedded LEDs an increasingly popular backlighting solution.

Custom Designed

Lighting Source:

Side Firing LED

Recommended Circuit:

Flexible Polyester (PET) or Flexible Kapton (FPC)

No limits on X & Y dimensions. Maximum thickness 1mm

Shared characteristics with standard Membrane Keypads

Range of LED colours including white, blue ,red, orange,green,yellow plus bi-colour and tri-colour combinations.

Embossed or Non Embossed

Tactile or Non Tactile

Full, gradient and selective backlighting options including switch positions.

Seemless backlighting, no shadow or witnessing from domes.

Contact us to discuss your requirements:
+44(0)1329 281 091
